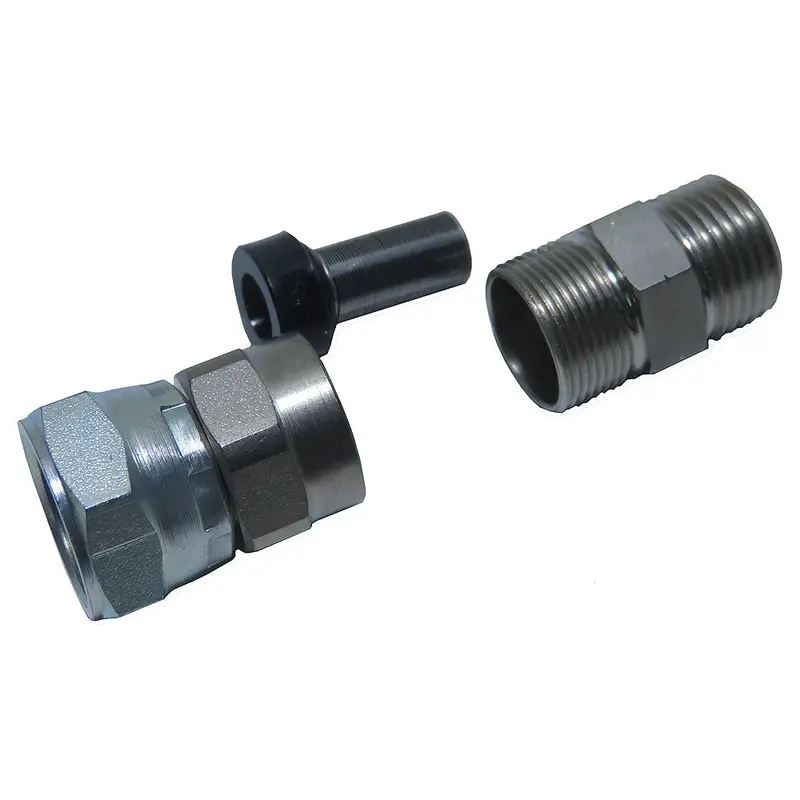

In-Line Low-Pressure Fluid Filter For Spray Guns – 3/8-Inch Fitting

Description

The in-line spray gun fluid (paint) filter can be used on low pressure HVLP, RP and Conventional pressure feed spray guns as a final filter before the coating reaches the spray gun. The filter housing comes with a standard 100 mesh filter screen.

Do not use filter with Air Assist Airless (AAA) and Airless spray guns.

Specifications:

• 3/8” male thread X 3/8” female swivel fitting – (72-550)
• Overall length 2” (inches)
• Carbon steel
• 100 mesh (150 micron) filter screen included
• Other in-line filter screen sizes sold separately

Available In-Line Filter Screens:

• 30 mesh (595 micron) – latex paint
• 60 mesh (250 micron) – standard for pigmented coatings
• 100 mesh (150 micron) – standard for clear coatings
• 200 mesh (74 micron) – optional for clear coatings

Please refer to alternate screen sizes above for different application needs. Replaces P/N W1754
