Polyurethane Twin-Hose Spray Assembly – Low-Pressure Compatible (5Ft / 15Ft / 25Ft Options)

Description

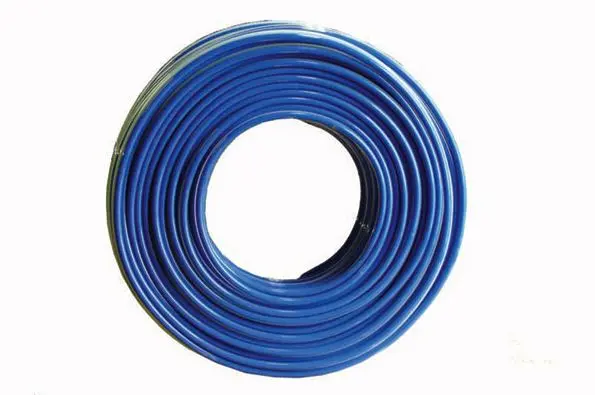

The polyurethane standard twin hose set is extremely light weight and consists of a blue air hose and clear fluid hose that are fused together and have reusable fittings.  The air fittings are ¼” NPS (F) and the fluid fittings are 3/8” NPS (F).  This hose set is for use with 2 Qt. pressure cups, larger pressure tanks and spray guns with air requirements up to 10 cfm.  The fluid hose is compatible with all solvents.

Specifications:

• 5’, 15’, & 25’ hose lengths available
• ¼” Inside diameter (I.D.) air hose (blue) – max pressure rating 125 psi
• 5/16” inside diameter (I.D.) fluid hose (clear)
• ¼” NPS (F) air fitting – (reusable)
• 3/8” NPS (F) fluid fitting – (reusable)
• 10 cfm air volume

Please note that this is a standard hose set for most applications.  If you need a protective anti-static hose sleeve, please reference S-6607-1 to purchase by the foot or S-6607 to purchase a roll.
