Premium Polyurethane Twin Air Hose Set – Low-Pressure Use (6 Ft / 15 Ft / 25 Ft Options)

Description

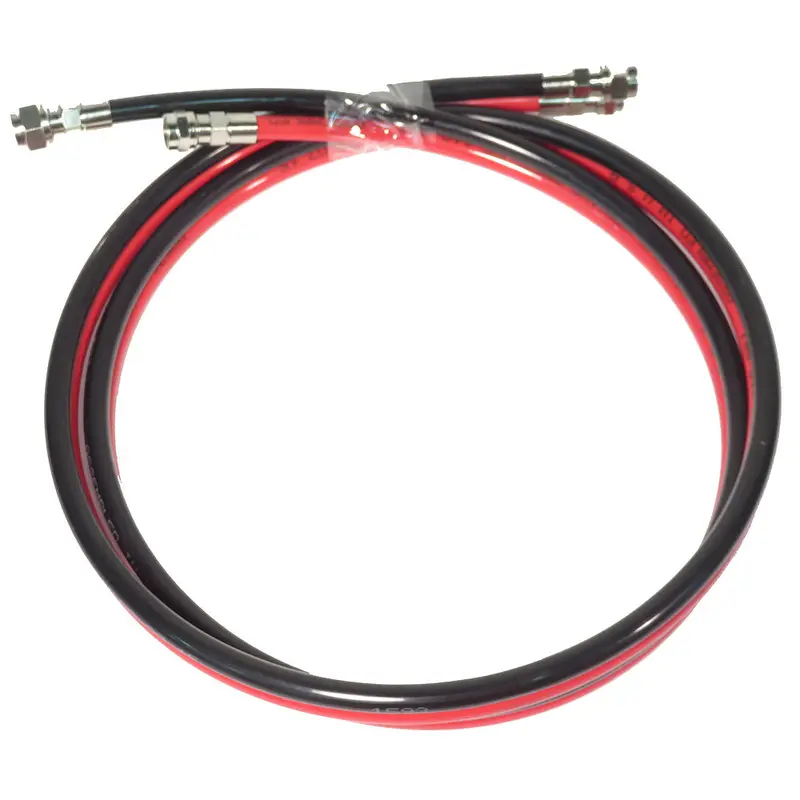

The polyurethane premium twin hose set is extremely light weight and consists of a red air hose and black fluid hose that are fused together and have reusable fittings.  This hose set offers a co-extruded polyamide core with a polyurethane cover and has ¼” NPS (F) air fittings and 3/8” NPS (F) fluid fittings.  This hose set is for use with 2 Qt. pressure cups, larger pressure tanks and spray guns with air requirements up to 10 cfm.  The fluid hose is compatible with all solvents.

Specifications:

• 5’, 15’, & 25’ hose lengths available
• ¼” Inside diameter (I/D) air hose (red) – max pressure rating 110 psi
• ¼” inside diameter (I/D) fluid hose (black) – max pressure rating 110 psi
• ¼” NPS (F) air fitting – (reusable)
• 3/8” NPS (F) fluid fitting – (reusable)
• 10 cfm air volume
• Co-extruded polyamide core
• Polyurethane cover
• 10.2 mm hose outside diameter (O/D)
•  440psi (minimum burst psi)
• 15 mm (minimum bend)
• -40 to 200 degrees F (temperature range)

Please note that this is a premium hose set for most applications.  For replacement air fittings use part # 76-341 (¼” NPF (F)) and for fluid fittings use part # 76-358 (3/8” NPS (F)).  To purchase bulk hose (250 feet per reel) use part # MAW-14.  If you need a protective anti-static hose sleeve, please reference S-6607-1 to purchase by the foot or S-6607 to purchase a roll.
