Aaa Hose Set – 1/8″ Fluid + 1/4″ Air Hose Configuration

Description

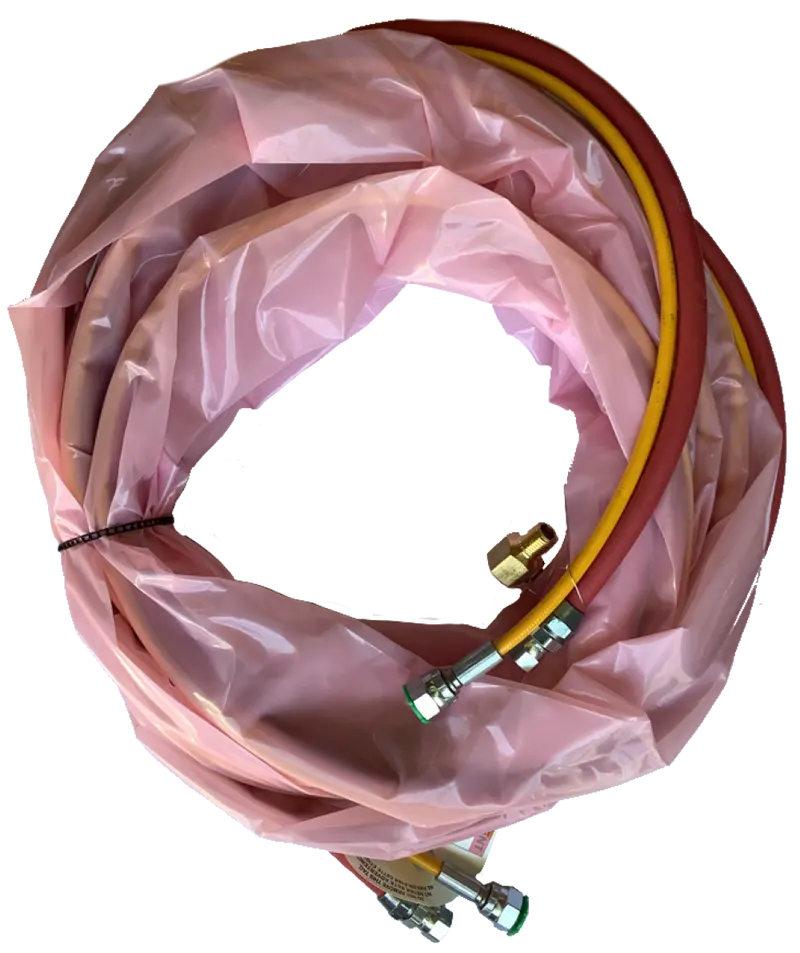

The Air-Assist Airless (AAA) hose set is very light weight and consists of a yellow (PA12 Series) 1/8” I.D. fluid hose and a ¼” I.D. red air hose with a pink protective anti-static hose sleeve.  This hose set offers a fluid hose with a polyamide nylon core, single high tensile carbon steel braid with a polyurethane cover and stainless steel ¼” NPS (F) fluid fittings along with a red flexible rubber air hose with ¼” NPS (F) reusable air fittings.  This hose set is for use with air-assist airless pumps and directly replaces the 53-404-15A, 53-404A & 53-404-35A hose sets for the C.A. Technologies 14:1 pump systems.  The fluid hose is compatible with all solvents.

Specifications:

• 15′, 25’ & 35′ hose set lengths
• 1/8” inside diameter (I.D.) fluid hose (yellow) – max pressure rating 5,000 psi
• ¼” Inside diameter (I.D.) air hose (red) – max pressure rating 200 psi
• ¼” NPS (F) fluid fitting – (stainless steel)
• ¼” NPS (F) air fitting – (reusable)
• Polyamide nylon core – (fluid hose)
• Single high tensile carbon steel braid – (fluid hose)
• Polyurethane cover ­– (fluid hose)
• 6.9 mm hose outside diameter (O.D.) – (fluid hose)
•  20,000 psi (minimum burst psi) – (fluid hose)
• 25 mm (minimum bend) – (fluid hose)
• -40 to 200 degrees F (temperature range) – (fluid hose)
• Flexible rubber – (air hose)
• Protective anti-static hose sleeve (pink)
• Directly replaces the C.A. Technologies 53-404A Air-Assist Airless (AAA) hose set assembly that is provided with the Bobcat 14:1 pump packages.

Please note that this hose set contains a PA12 series fluid hose for air-assist airless (AAA) applications.  To purchase replacement or additional protective anti-static hose sleeve, please reference S-6607-1 to purchase by the foot or S-6607 to purchase a roll.
