Aaa Hose Set – 3/16″ Fluid + 1/4″ Air Hose Combo

Description

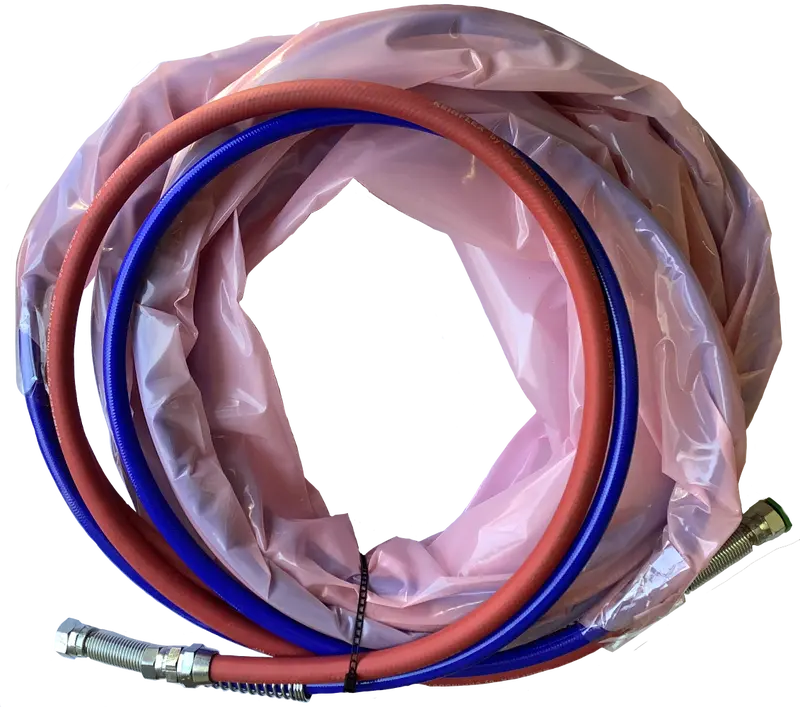

The Air-Assist Airless (AAA) hose set consists of a blue (KX23 Series) 3/16” I.D. fluid hose and a ¼” I.D. red air hose with a pink protective anti-static hose sleeve.  This hose set offers a fluid hose with a polyamide nylon core, polyester textile fiber braid with a polyurethane cover and stainless steel ¼” NPS (F) fluid fittings along with a red flexible rubber air hose with ¼” NPS (F) reusable air fittings.  This hose set is for use with air-assist airless pumps and directly replaces the 53-402-15A, 53-402A, 53-402-35A & 53-402-50A hose sets for the C.A. Technologies 14:1 pump systems.  The fluid hose is compatible with most solvents.

Specifications:

• 15′, 25’, 35′ & 50′ hose set lengths
• 3/16” inside diameter (I.D.) fluid hose (blue) – max pressure rating 3,500 psi
• ¼” Inside diameter (I.D.) air hose (red) – max pressure rating 200 psi
• ¼” NPS (F) fluid fitting – (stainless steel)
• ¼” NPS (F) air fitting – (reusable)
• Polyamide nylon core – (fluid hose)
• Polyester textile fiber braid – (fluid hose)
• Polyurethane cover ­– (fluid hose)
• 10.4 mm hose outside diameter (O.D.) – (fluid hose)
• 14,000 psi (minimum burst psi) – (fluid hose)
• 40 mm (minimum bend) – (fluid hose)
• -40 to 200 degrees F (temperature range) – (fluid hose)
• Flexible rubber – (air hose)
• Protective anti-static hose sleeve (pink)
• Directly replaces the C.A. Technologies 53-402A Air-Assist Airless (AAA) hose set assembly that is provided with the Cougar 14:1 pump package and the H20 14:1 pump packages.

Information:

KX23 Series Fluid Hose – Data Sheet

Please note that this hose set contains a KX23 series fluid hose for air-assist airless (AAA) applications.  To purchase replacement or additional protective anti-static hose sleeve, please reference S-6607-1 to purchase by the foot or S-6607 to purchase a roll.
