Pa12 Air-Assist Airless & Airless Fluid Hose – 1/8″ Id, 5000 Psi Rated

Description

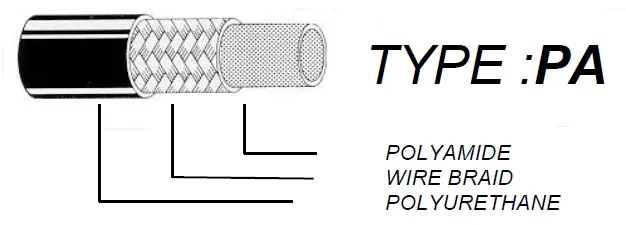

The PA12 Series High Pressure Paint (Fluid) Hose is extremely light weight, flexible and offers extreme abrasion resistance.  The fluid hose is yellow in color and has an 1/8” I.D. with a polyamide Nylon® core, high tensile brass plated carbon steel wire braid reinforcement and a polyurethane cover.  It is equipped with stainless steel ¼” NPS (F) fluid fittings and the hose inner core is resistant to most of the solvents used in the air-assist airless (AAA) and airless paint industries.  In addition, the high pressure fluid hose is static free, 100% conductive, offers a low diffusion rate and low flow resistance while being UV and Ozone resistant.  The PA12 Series fluid hose is for use with air-assist airless pumps and directly replaces the 53-404-15 (15 ft), 53-404 (25 ft) & 53-404-35 (35 ft) fluid hoses for the C.A. Technologies 14:1 pump systems.

Specifications:

• 15’, 25’ & 35’ hose lengths available
• 1/8” inside diameter (I.D.) fluid hose (yellow) – max pressure rating 5,000 psi
• ¼” NPS (F) fluid fitting
• Polyamide nylon core
• Single high tensile carbon steel braid
• Polyurethane cover
• 7 mm hose outside diameter (O.D.)
•  20,000 psi (minimum burst psi)
• 25 mm (minimum bend)
• -40 to 200 degrees F (temperature range)
• Directly replaces the C.A. Technologies 53-404 Air-Assist Airless (AAA) hose set assembly that is provided with the Bobcat 14:1 pump packages.

Please note that this hose set contains a PA12 series fluid hose for air-assist airless (AAA) applications.  To purchase replacement or additional protective anti-static hose sleeve, please reference S-6607-1 to purchase by the foot or S-6607 to purchase a roll.
